Mastech

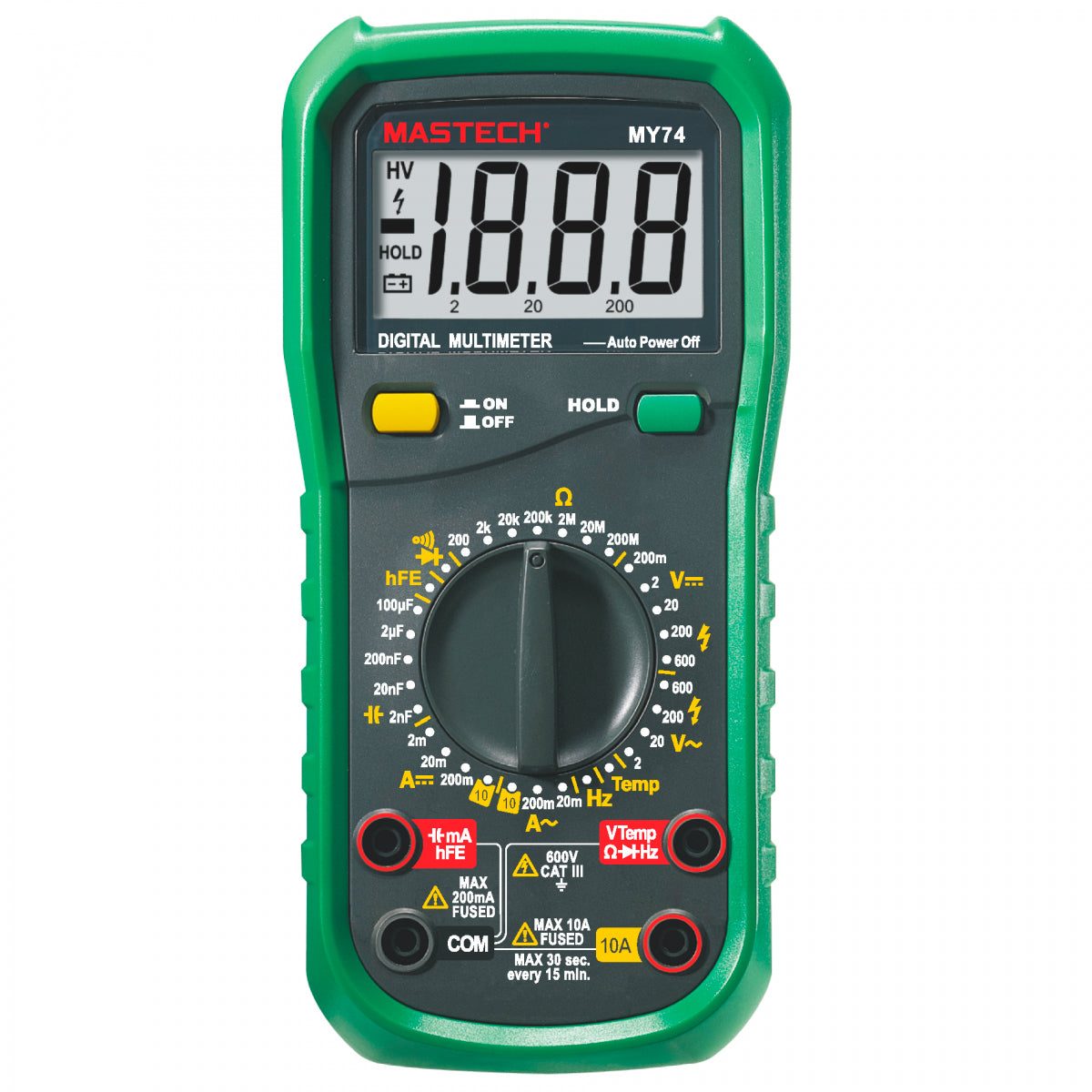

Mastech Digital multimeter CAT III 600V
Mastech Digital multimeter CAT III 600V
Regular price
€57,67 EUR
Regular price
Sale price
€57,67 EUR
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Mastech digital multimeter 600 V, CE.
The clearly displayed meter has e.g. battery-saving autopower off and datahold functions.
Protection classification CAT III 600 V.
Stand-alone protective case, K-type temperature sensor -50 ... +250 degrees Celsius as standard equipment. Test leads 10 A and English instructions.
The package does not contain a battery.
TECHNICAL INFORMATION
DCV: 200mV, 2V, 20V, 200V.
ACV: 2 V, 20 V, 200 V .
DCA: 2mA, 20mA, 200mA.
ACA: 2 mA, 20 mA, 200 Ma.
Resistance: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ,
Capacitance: 2 nF, 20 nF, 200 nF, 2 uF (±4% + 3) 100 uF (6.0% + 10).
Continuity buzzer: < 50 Ω.
Diode testing: 2.7V.
Transistor hFE measurement with a separate adapter.
Frequency: 20kHz.
Temperature: -20...+100 degrees Celsius.
Dimensions: 90 x 189 x 31.5 mm.
Weight: 366 g.
Battery: (9V 6LF22/6LR61)
The clearly displayed meter has e.g. battery-saving autopower off and datahold functions.
Protection classification CAT III 600 V.
Stand-alone protective case, K-type temperature sensor -50 ... +250 degrees Celsius as standard equipment. Test leads 10 A and English instructions.
The package does not contain a battery.
TECHNICAL INFORMATION
DCV: 200mV, 2V, 20V, 200V.
ACV: 2 V, 20 V, 200 V .
DCA: 2mA, 20mA, 200mA.
ACA: 2 mA, 20 mA, 200 Ma.
Resistance: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ,
Capacitance: 2 nF, 20 nF, 200 nF, 2 uF (±4% + 3) 100 uF (6.0% + 10).
Continuity buzzer: < 50 Ω.
Diode testing: 2.7V.
Transistor hFE measurement with a separate adapter.
Frequency: 20kHz.
Temperature: -20...+100 degrees Celsius.
Dimensions: 90 x 189 x 31.5 mm.
Weight: 366 g.
Battery: (9V 6LF22/6LR61)
