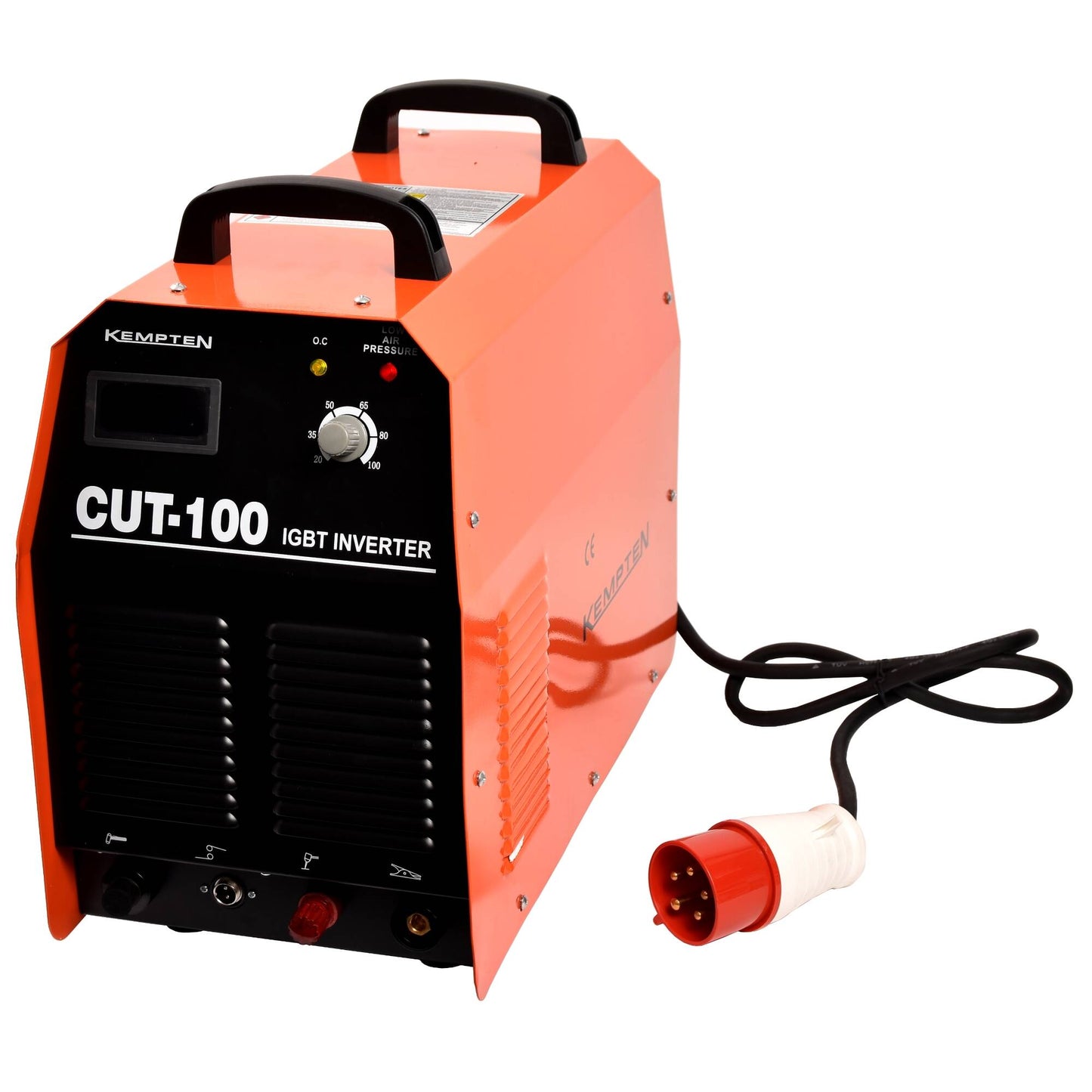

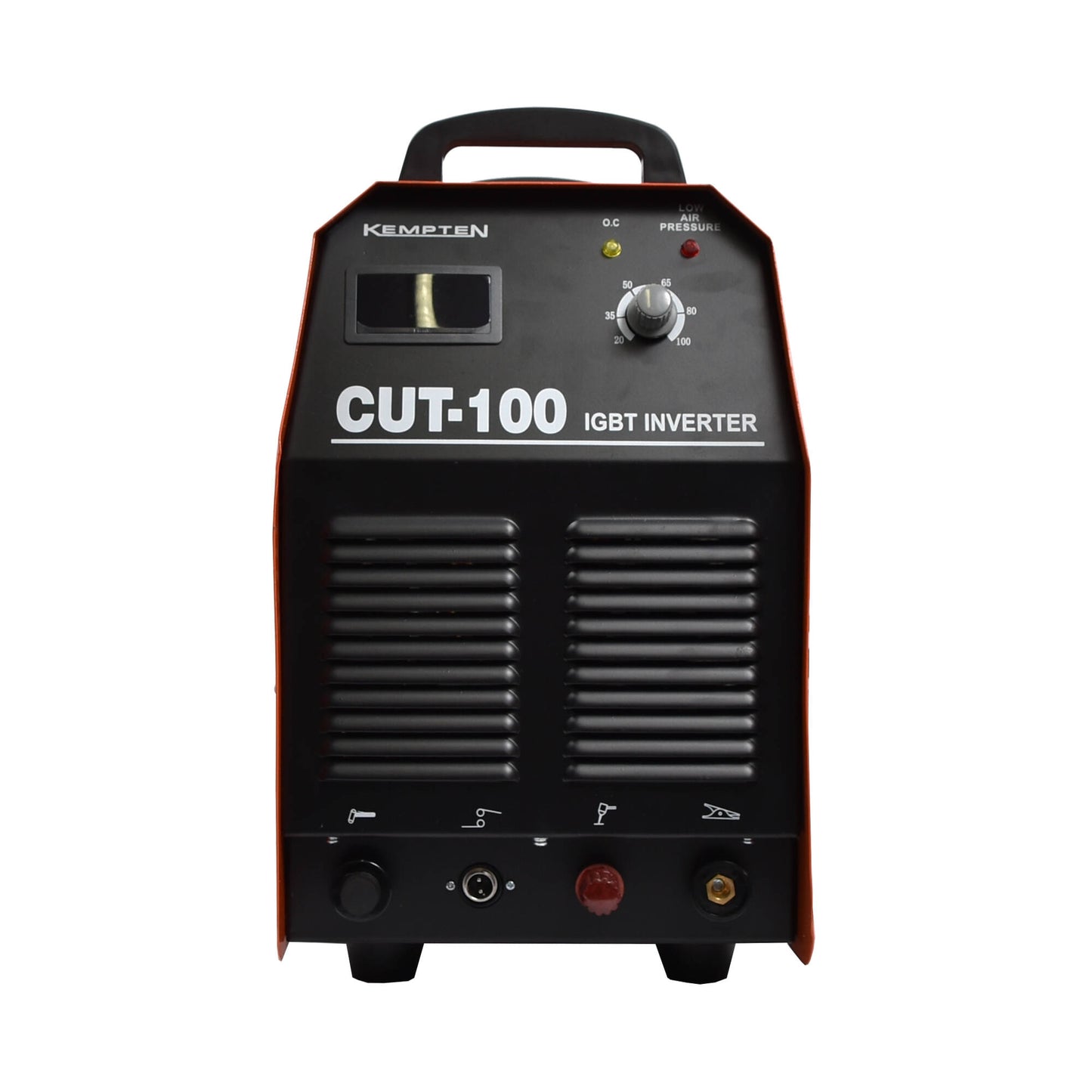

KEMPTEN Plasma cutting machine CUT 100

FOR VERY DEMANDING USE

The Kempten Cut 100 plasma cutting device aims at three things: The device's lightness, speed and competitive price.

A cutting thickness of up to 30 mm is a feature of the machine suitable for the demanding hobbyist and the industry. The device is suitable for cutting all types of electrically conductive steel.

Thanks to the two handles, you can get a firm grip on the device when moving it from one place to another.

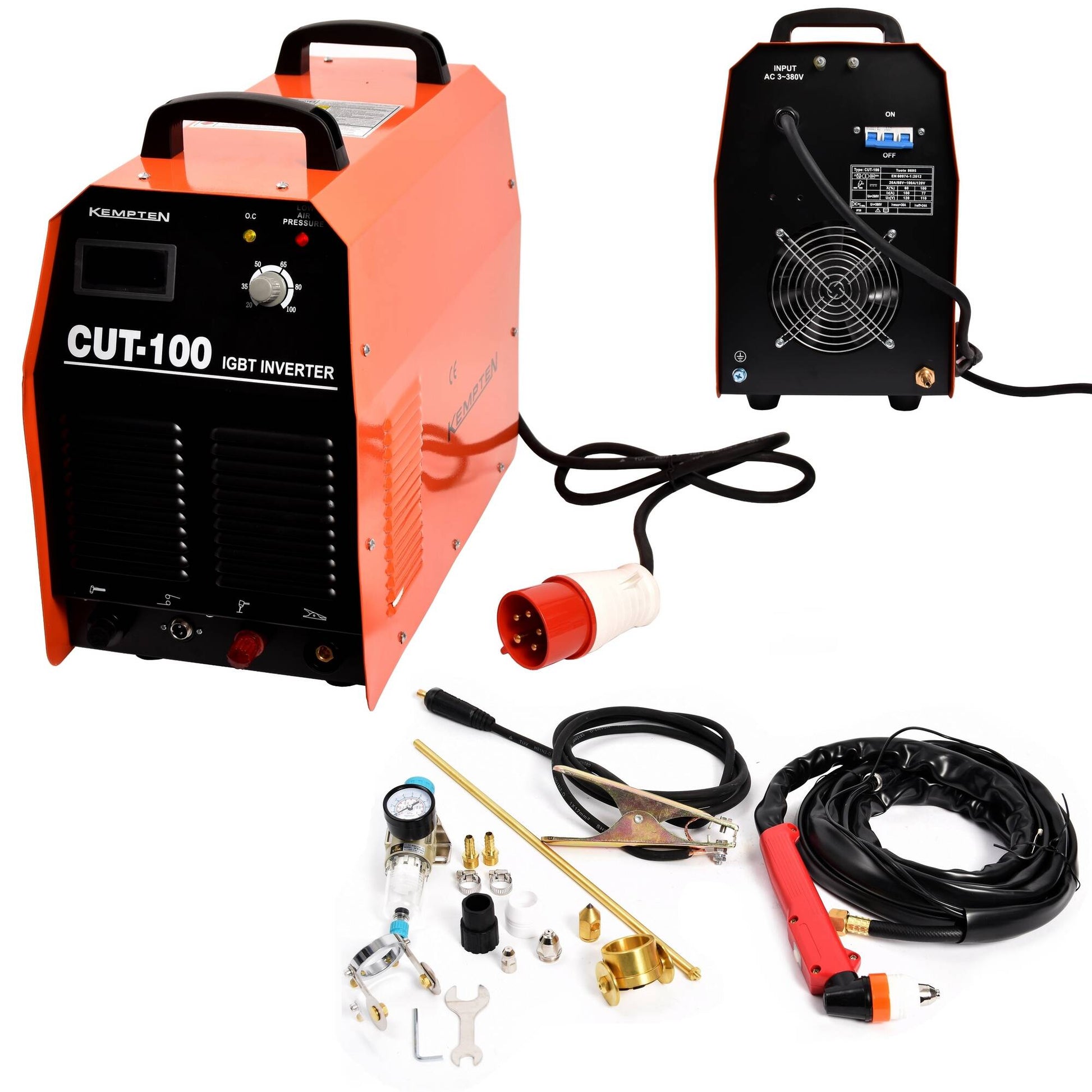

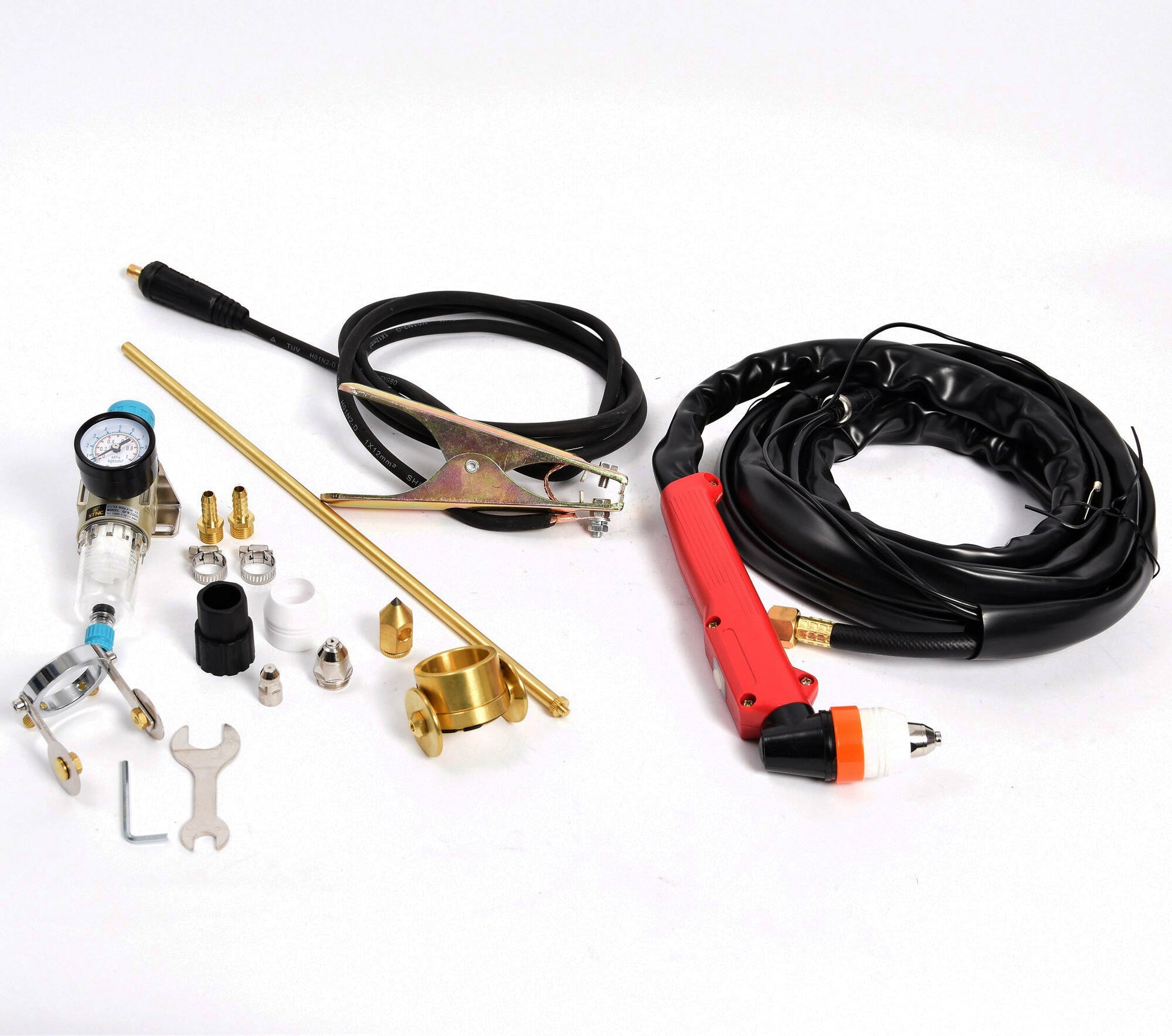

Includes grounding cable and torch cable.

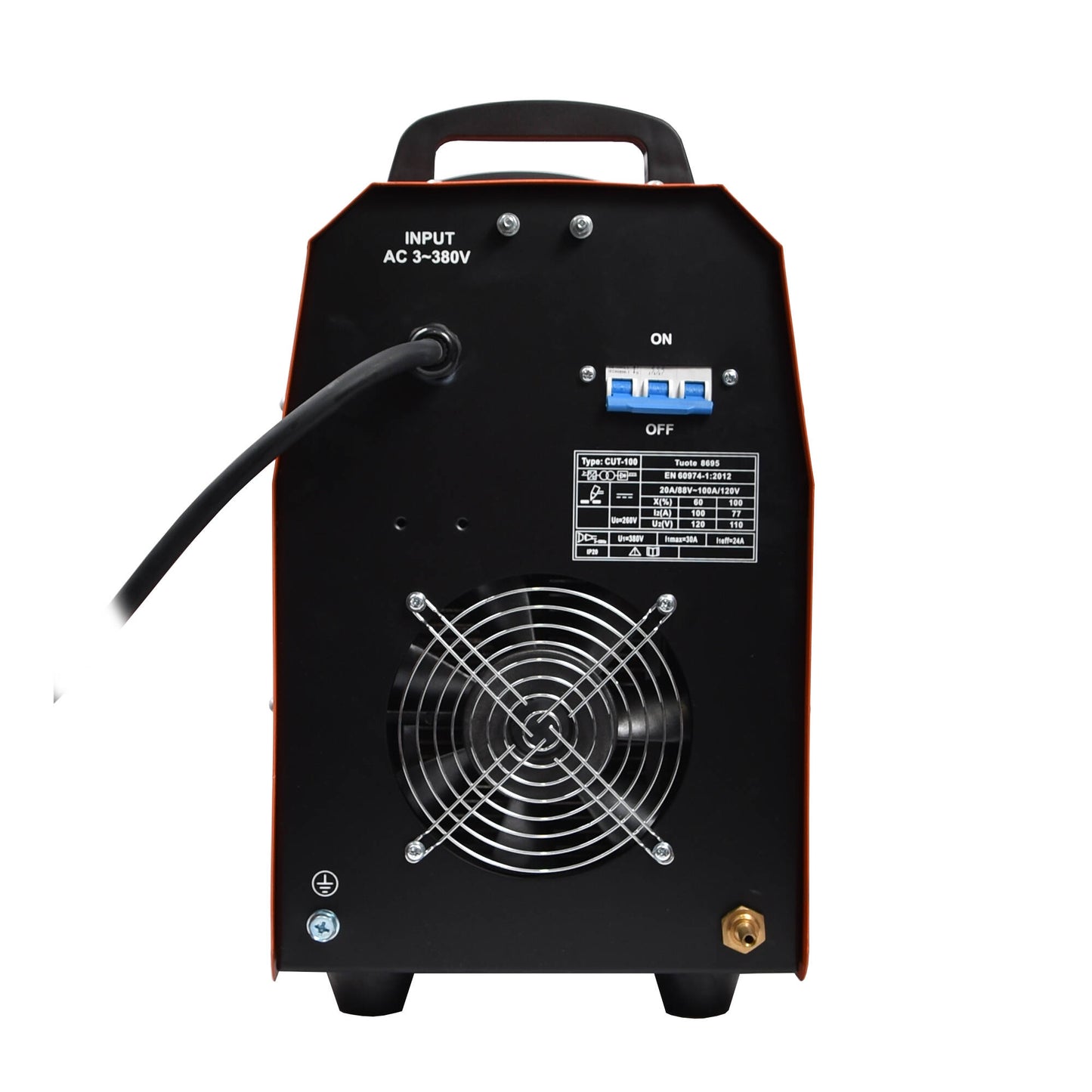

A 32 A power current is connected to the socket.

Connection voltage 380 V 50 Hz
Connection power 15 kVA
Fuse 63 A
No-load voltage 270 V
Rated output current 100 A
Load 60%
Max. Cutting thickness 30 mm
Inner diameter of the burner 1.5 mm
Air compressor pressure (kg) 4 - 5
Grounding cable 2.5m
Burner cable 3.8m
Connection cable 1.6m with 32 A plug
Length 620 mm
Width 325 mm
Height 560 mm
Weight 30 kg
Protection class IP20
