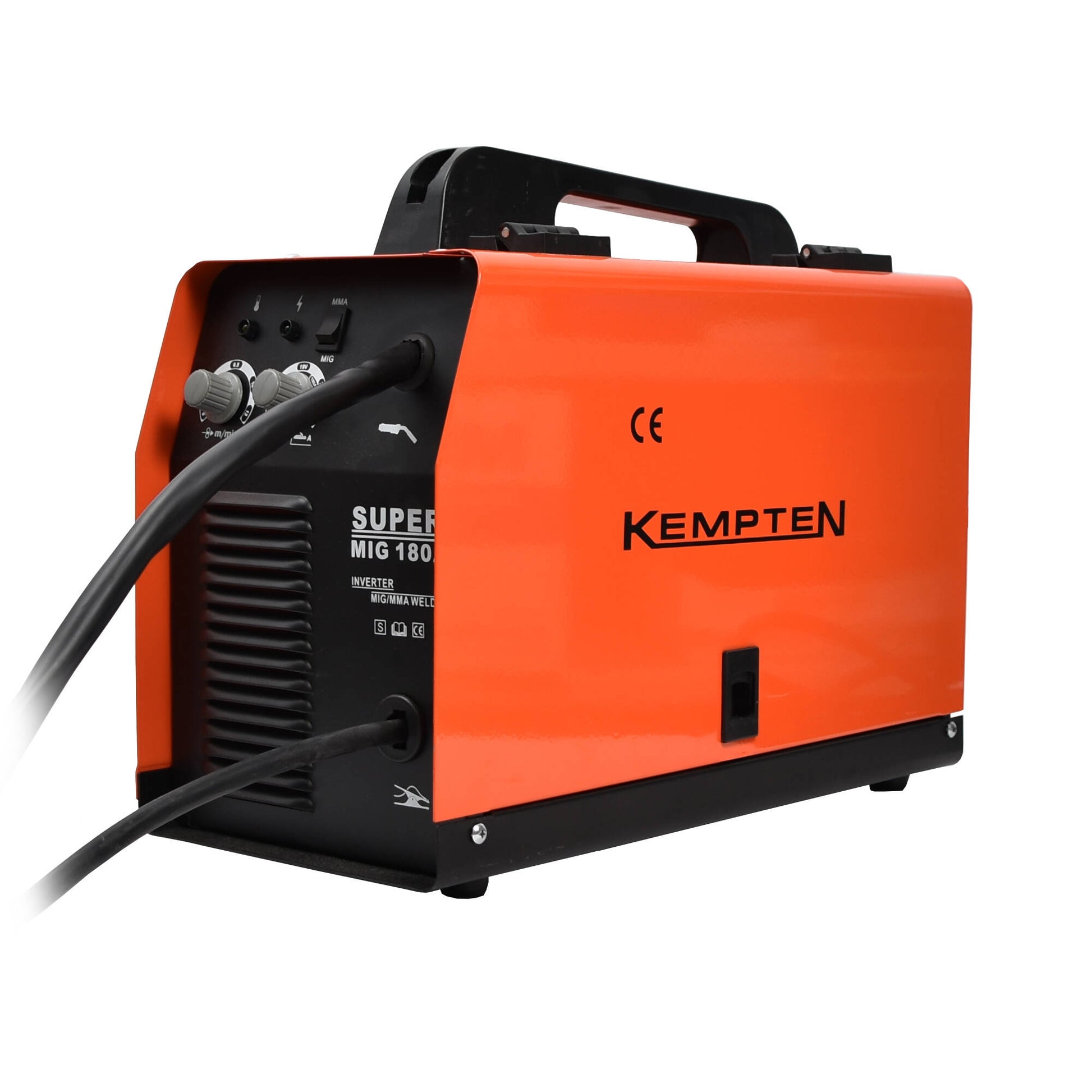

KEMPTEN Welding machine MIG/MAG/MMA 180A

ROBUST AND RELIABLE SINGLE-STAGE WELDING MACHINE

A robust and reliable single-phase welding machine. The machine's three welding methods guarantee the right method for almost all welding, whether you weld with a stick or wire.

Thanks to its small size and light weight, it can be easily moved and carried to work sites.

The machine can weld with almost all stick types. Suitable for light industry, garages and hobbies. Suitable for welding almost all steels.

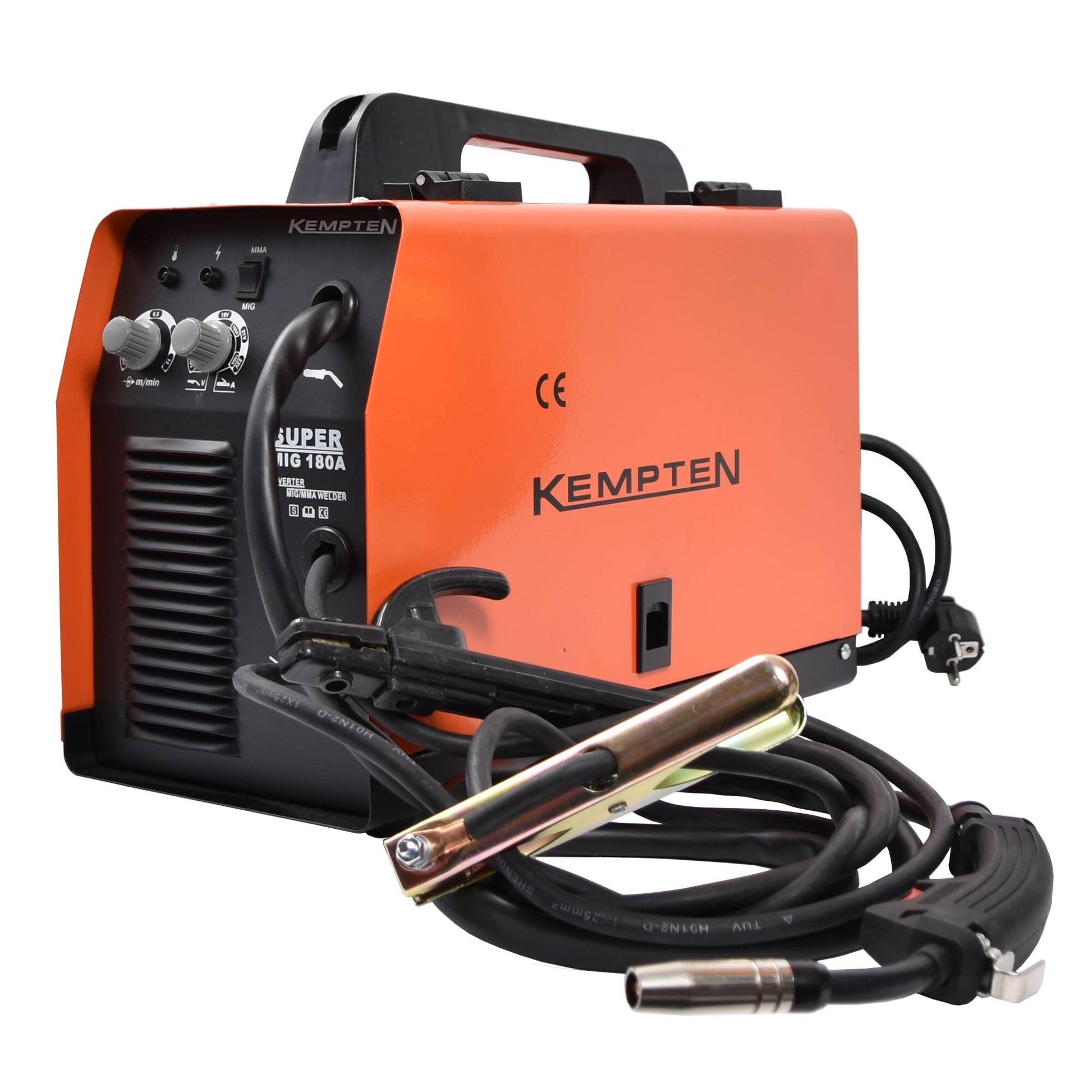

The package includes a grounding cable, a MIG/MAG torch cable and an MMA stick holder cable.

Connects to a 16 A Schuko socket.

Connection voltage 230 V 50/60Hz
Connection power 8.6 kVA 25% / 5.3 kVA 60% / 4.2 kVA 100%
Fuse 16 A
Max. Welding current 180 A
Load capacity ED 25% 180 A
Load capacity ED 60% 120 A
Load capacity ED 100% 100 A
No-load voltage 55 A
Voltage staircase Stepless
Welding wire 0.6-1.00 mm Ø
Thread spool 5 kg 200 mm Ø max
Wire feed speed 1-12m/min
Polarity reversal On
Fan cooling On
Welding torch 1.7 m
Grounding cable 1.4 m
Connection cable 1.7 m with 16 A Schuko plug
Length 450 mm
Width 205 mm
Height 370 mm
Weight 16 kg
Protection class IP20
