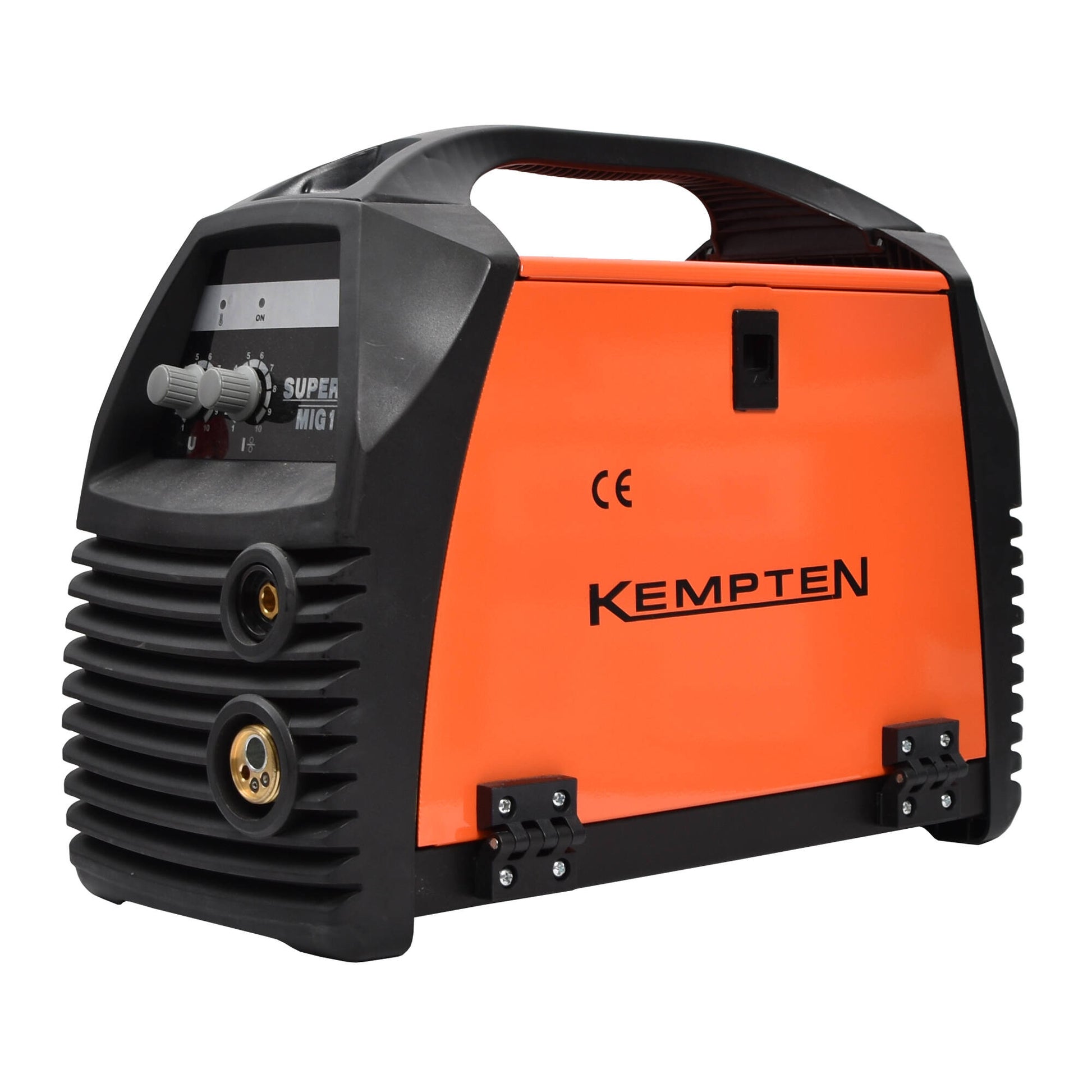

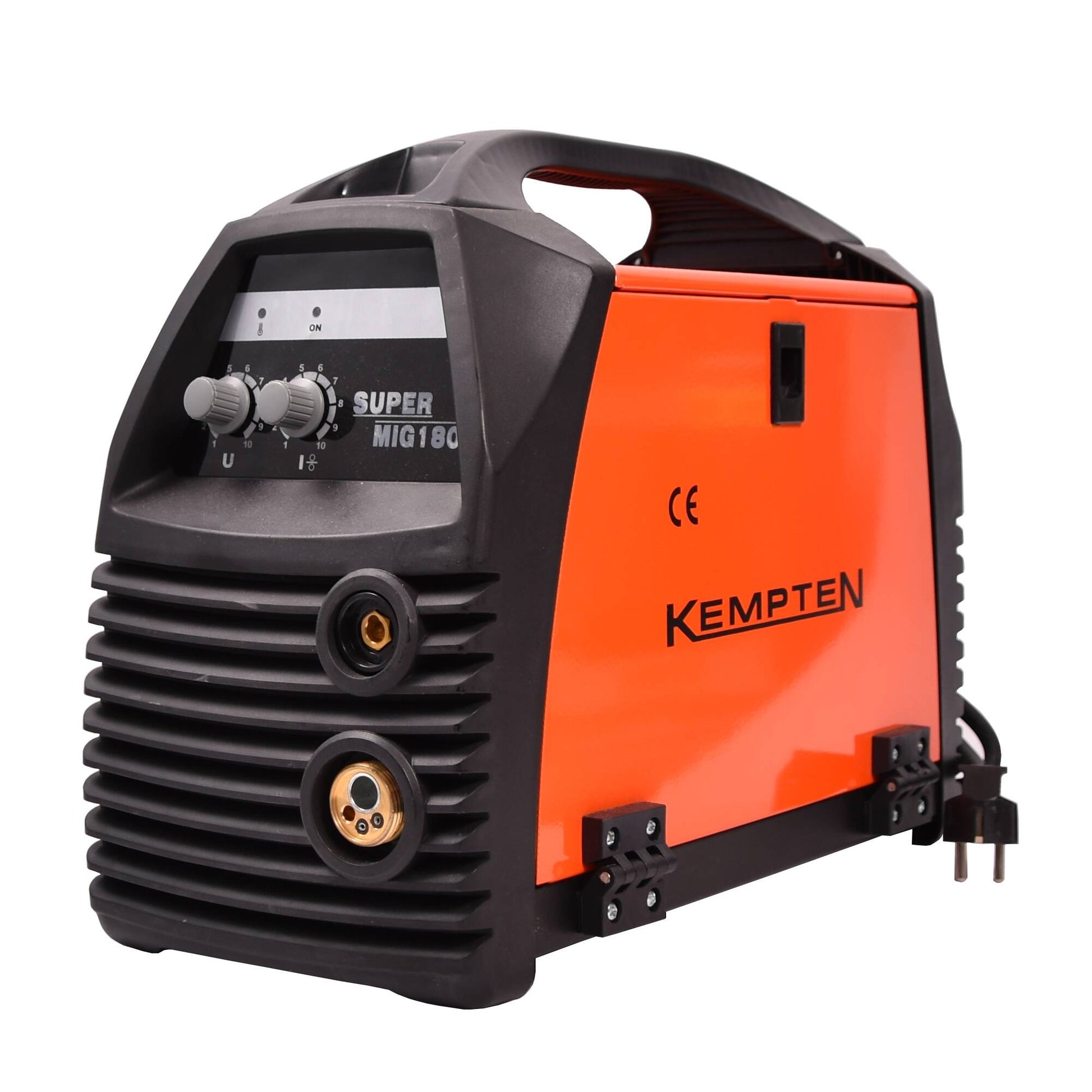

KEMPTEN Welding machine MIG 180

THE ADAPTABLE TOOL FOR THE MOBILE WELDER

Kempten MIG 180 is an easy-to-use MIG welding device and is suitable for both hobby and professional use.

The welding device is compact, efficient and very light. The welding device is easy to carry. The welding device can also be used with a generator on construction sites.
The package includes a grounding cable and a MIG torch cable.

Features:
• The welding voltage and welding wire feed speed can be adjusted easily with the same adjustment.
• The welding arc and welding wire are adjusted with their own buttons.
• The device's welding properties are ideal at 0.8 mm
for welding with welding wire.
• Also 0.8mm and 0.9mm or 1.0mm solid or hollow
welding wire can be used.

Connects to a 16 A Schuko socket.

Connection voltage 230 V, 50/60 Hz
Connection power 8.6 kVA max
Fuse 16 A
Max. Welding current 180 A
Load capacity ED 60% 120 A
Load capacity ED 100% 100 A
No-load voltage 55 V
Voltage staircase Stepless
Welding wire 0.8-1.0 mm Ø
Thread spool 5 kg 200 mm Ø max
Wire feed speed 1-12 m/min
Polarity reversal On
Fan cooling On
Welding torch 2.8 m
Grounding cable 1.4 m
Connection cable 1.7 m with 16 A Schuko plug
Length 610 mm
Width 345 mm
Height 460 mm
Weight 18 kg
Protection class IP20
