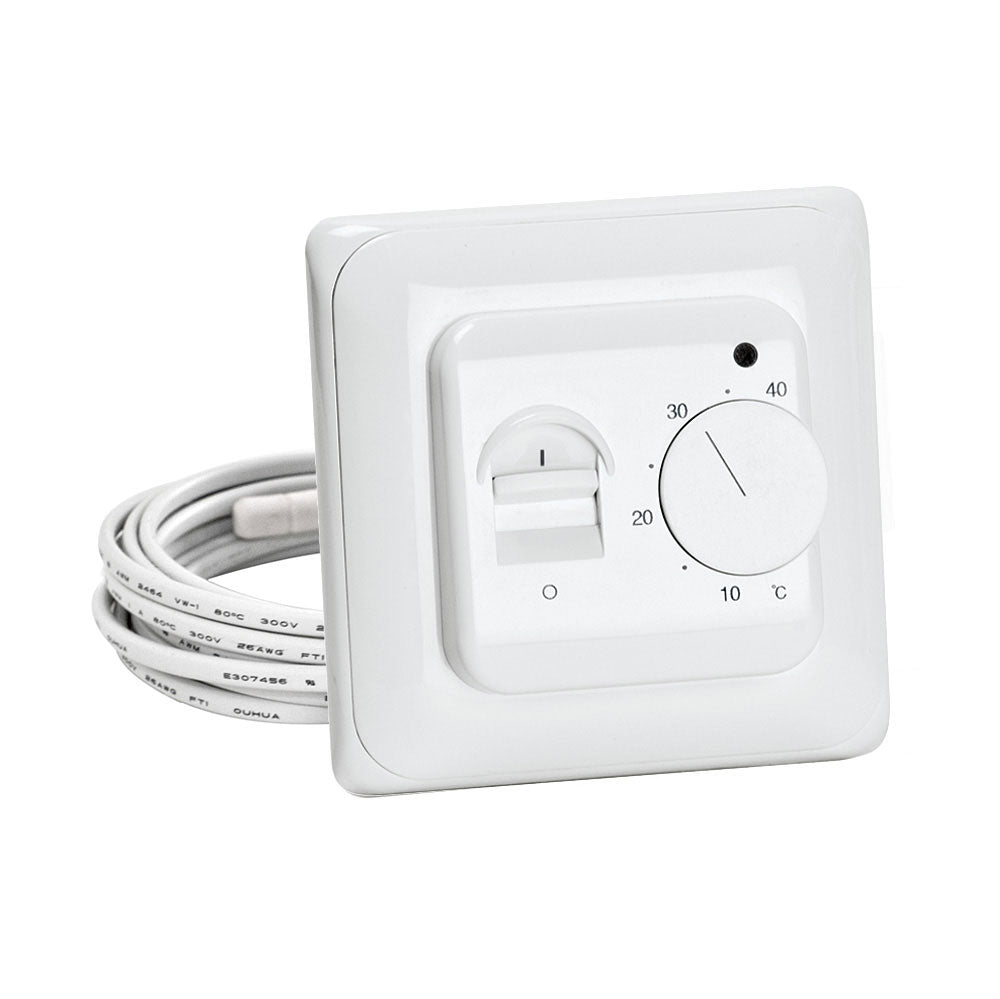

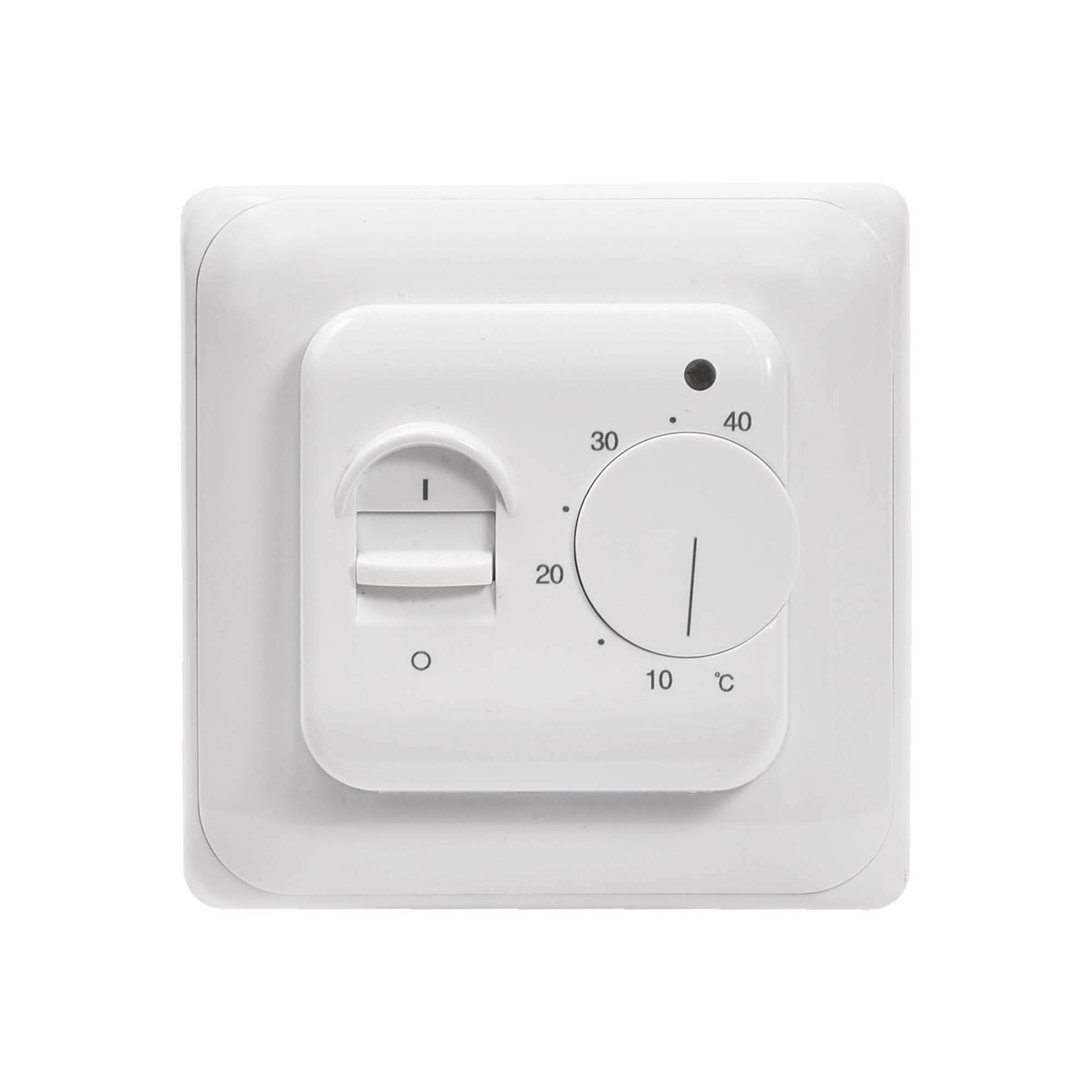

Båden Floor heating thermostat mechanical

A thermostat with a power switch for controlling floor heating, is installed in a wall box. The thermostat has an LED light that indicates when the heating is on.

The breaking capacity of the thermostat switching relay is 16A / 3600W.
The package contains a 3-meter floor sensor cable.

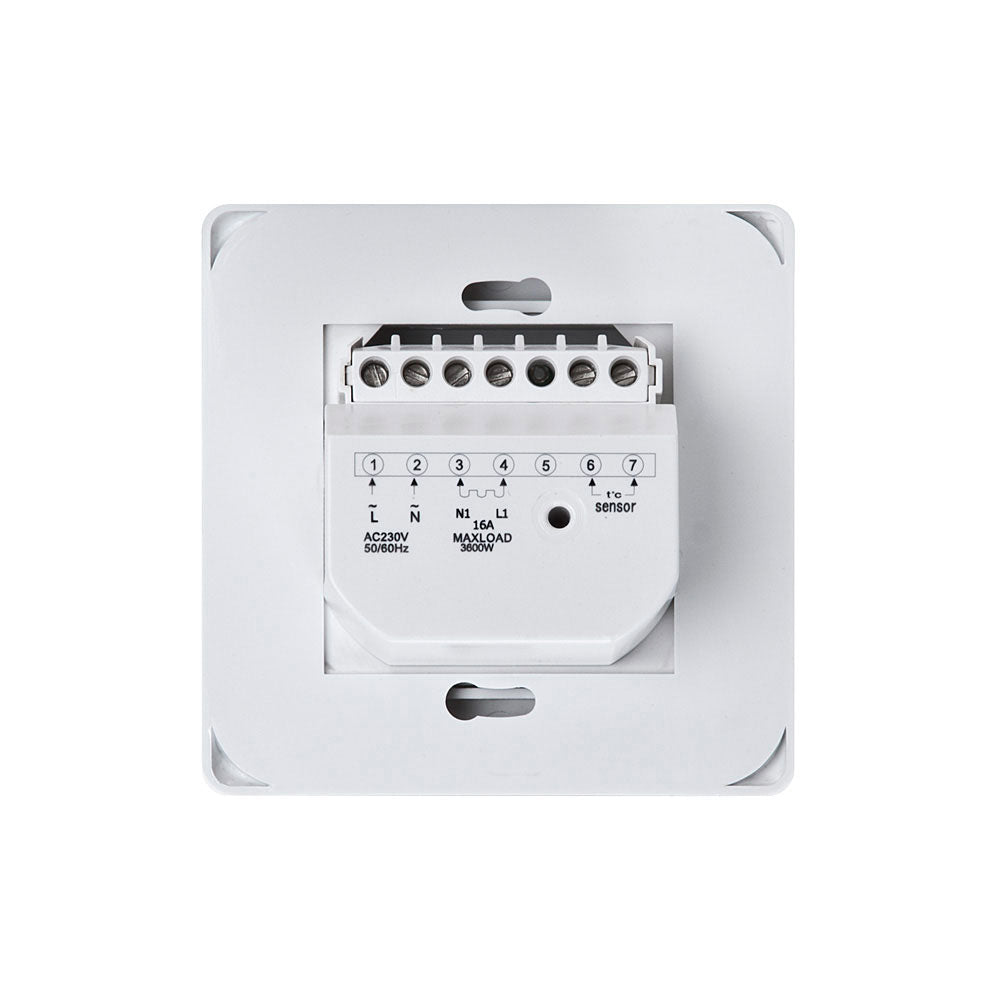

Operating voltage: 230 VAC +10 / -15% 50/60 Hz
Breaking capacity: 16A / 3600W
Hysteresis: 0.4 °C
Temperature adjustment range: +5...+40 °C
Includes NTC floor sensor cable 3 m 10 kohm @ +25°C
Operating temperature range: 0...+50 °C
CE approved
Height: 87 mm
Width: 87 mm
Depth: 50 mm
Weight: 0.15 kg
Protection class: IP20 (for indoor use)
Color white
Material: Plastic
